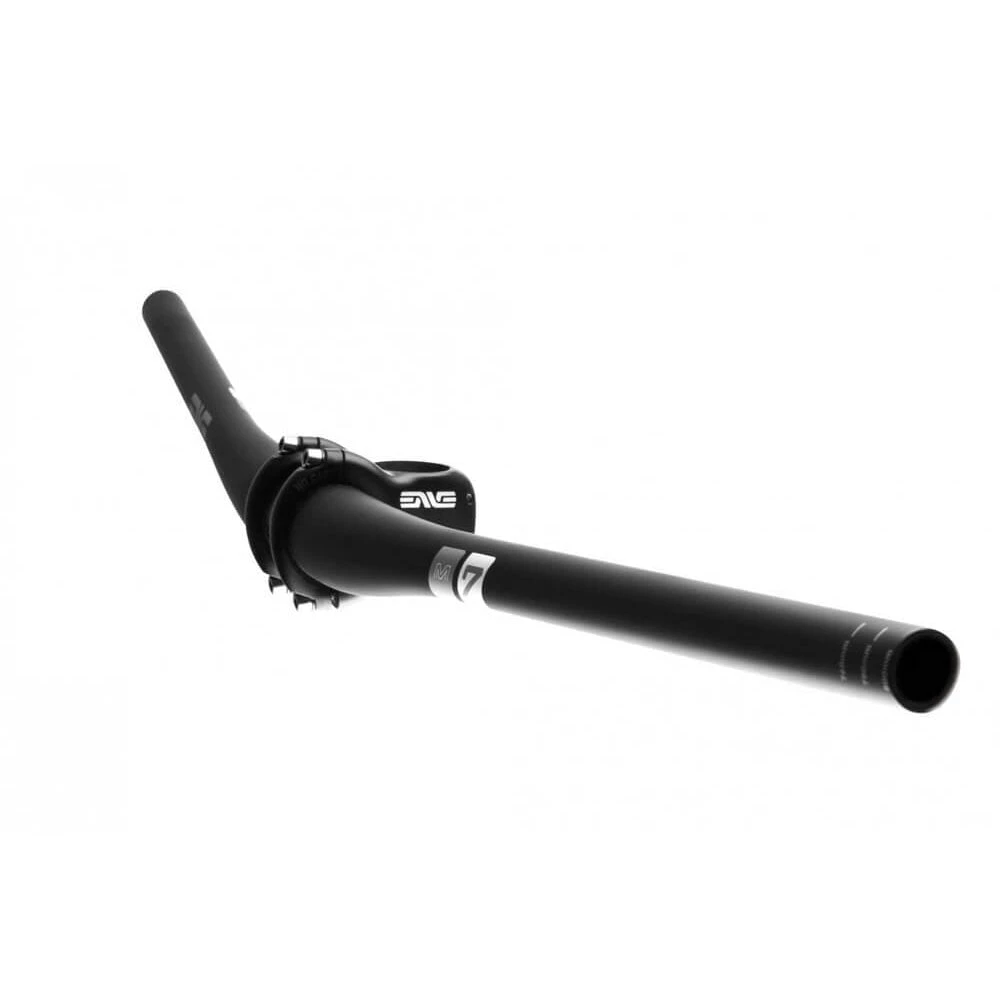

Enve M7 Carbon Bars

The M7 bar is Enve’s 35mm diameter bar that’s built to descend. Carbon fibre is the ideal material for a gravity bar because fibre orientation and bar shape can be controlled independently and developed in unison, resulting in a tuned flex profile that cannot be achieved with aluminium.

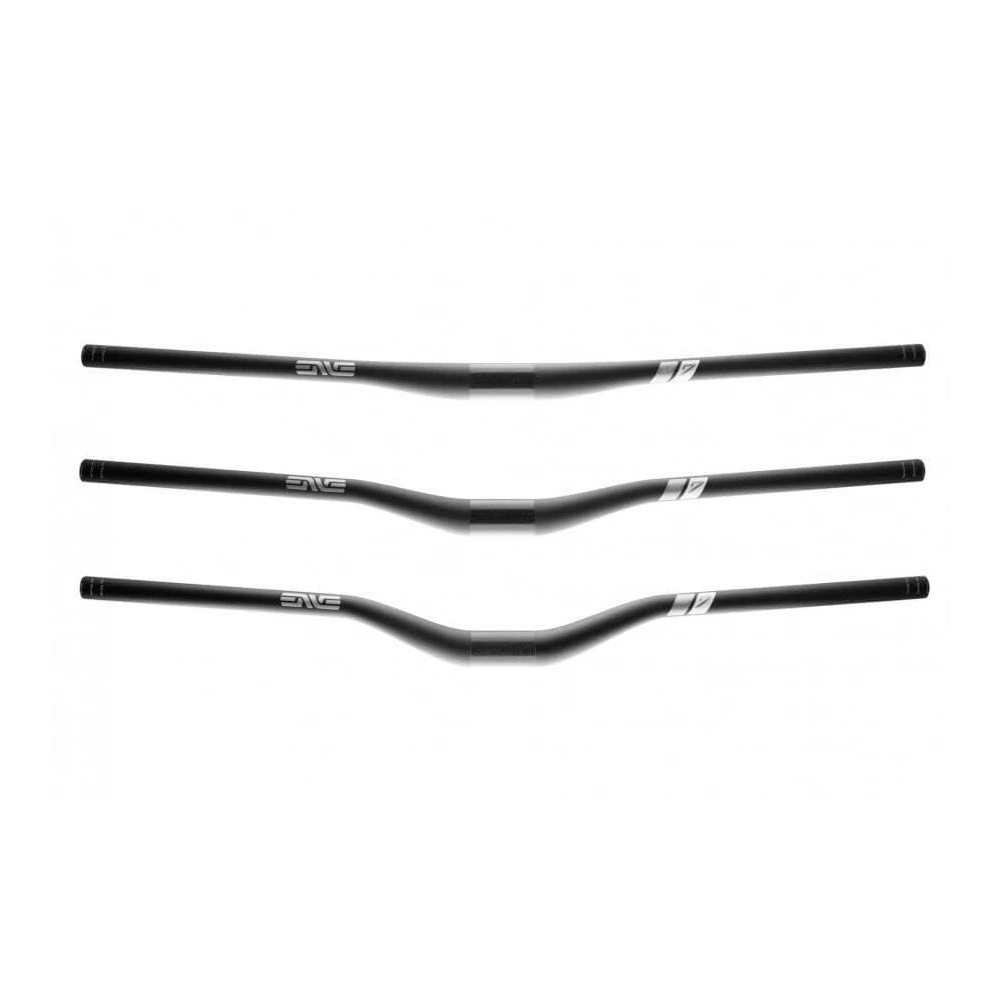

This bar is tuned to be precise and responsive while absorbing fatigue-inducing chatter and taking the sting out of the biggest hits. Available in a 10mm, 25mm, or 40mm rise, the M7 bar features a trail-perfect 8˚ sweep and 4˚ tip for your long-travel 29er, enduro race bike, or downhill machine.

Specs 10mm Rise:

• Material Carbon
• Weight 230g
• Bar Width (Max) 800mm
• Bar Width (Min) 780mm
• Clamp Diameter 35mm
• Rise 10mm
• Sweep 8 Degrees
• Tip 4 Degrees
• Torque Spec: Face Plate 5.5Nm
• Torque Spec: Controls 5.5Nm

Specs 25mm Rise:

• Material Carbon
• Weight 240g
• Bar Width (Max) 800mm
• Bar Width (Min) 780mm
• Clamp Diameter 35mm
• Rise 25mm
• Sweep 8 Degrees
• Tip 4 Degrees
• Torque Spec: Face Plate 5.5Nm
• Torque Spec: Controls 5.5Nm

Specs 40mm Rise:

• Material Carbon
• Weight 245g
• Bar Width (Max) 800mm
• Bar Width (Min) 780mm
• Clamp Diameter 35mm
• Rise 40mm
• Sweep 8 Degrees
• Tip 4 Degrees
• Torque Spec: Face Plate 5.5Nm
• Torque Spec: Controls 5.5Nm
