Manitou Mezzer Expert Fork Suspension Forks

Since their first mountain bike suspension fork in 1989, Manitou has continued to pursue the “science of smooth” with decades of extensive R&D and testing at national and global Pro MTB levels and their development of countless notable products over those years has resulted in Manitou earning a reputation for having some of the most reliable suspension products on the market.

Featuring 37mm stanchions and Manitou’s Reverse Arch design, the Mezzer Expert is 2nd the stiffest Enduro fork on the market and also the 2nd lightest at just 2.03kg. 2nd of course to the Mezzer Pro!

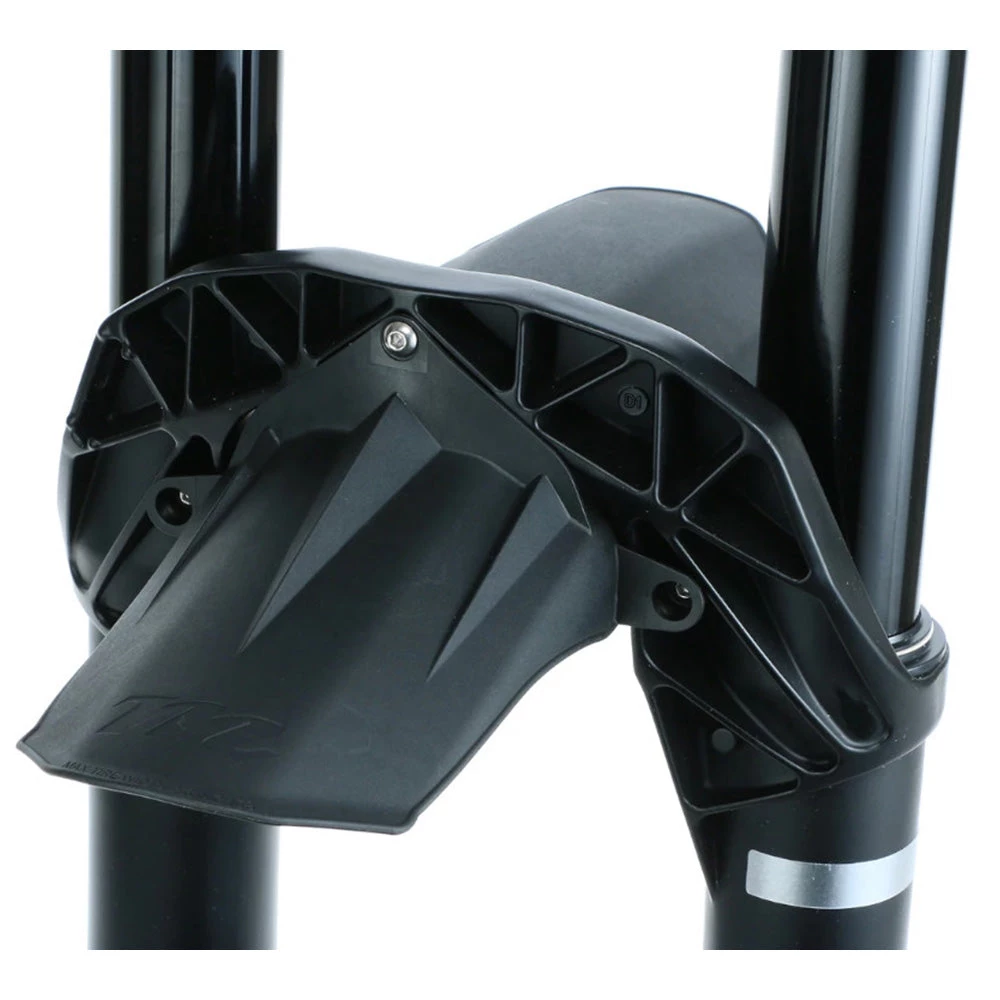

The Mezzer Expert features adjustable travel from 14-180mm, easy to use VTT-6P “Variable Terrain Tune 6 position” damper with externally adjustable compression and rebound damping, Hexlock SL2 axle for increased stiffness, Manitou’s IVA integrated air spring volume adjustment, TSR valves on the lowers so you can relieve air pressure build-up, and an integrated fender.

The distinctive reverse bridge design of the Manitou lower legs is said to increase the stiffness, lower weight, shield your seals from debris and provide protected hydraulic hose routing without affecting frame clearance and tyre clearance.

Who this for? Enduro, All-Mountain and trail riders looking for a super stiff, lightweight, adjustable and stylish fork that gives them flexibility without complexity.

Spring type: Air sprung.

Wheel size compatibility: 27.5″ 29″

Weight: 2030g (27.5″) 2062g (29″)

Fork offset: 37/44 (27.5″) 44/51 (29″)

Ride Height: 534-574mm (27.5″) 554-594mm (29″)

Max tyre width: 74mm or 2.9″ without fender. 69mm with fender.

Suspension travel amount: 140mm-180mm adjustable in 10mm increments.

Compression damper style technologies/adjustments: VTT-6P Variable Terrain Tune with externally adjustable 6-position compression tune adjustment.

Rebound damper technologies/adjustments: Open cartridge TPC with 10 clicks of rebound adjustment

Travel adjustability: Yes, adjustable internally between 140-180mm in 10mm increments via included travel spacers.

Volume adjustability: Yes, the IVA (Incremental Volume Adjuster) allows you to vary the air spring chamber volume by re-arranging the self contained volume spacers. No more adding and subtracting and no more loosing volume spacers.

Stanchion diameter: 37mm.

Axle size and style: 15x110mm “Boost” Thru Axle.

Steerer tube standard: Tapered 1 1-8-1.5 Inches.

Steerer length: 248mm.

Lowers materials: 7000- Series Butted Wall Aluminum.

CSU / Steerer tube materials: Forged Aluminum, Hollow Bore.

Brake hose clamp/retention style: Bolted clamp.

Brake mount style: 180mm post mount.

Brake rotor compatibility (minimum/maximum): Post mount 180mm (223mm Max).
