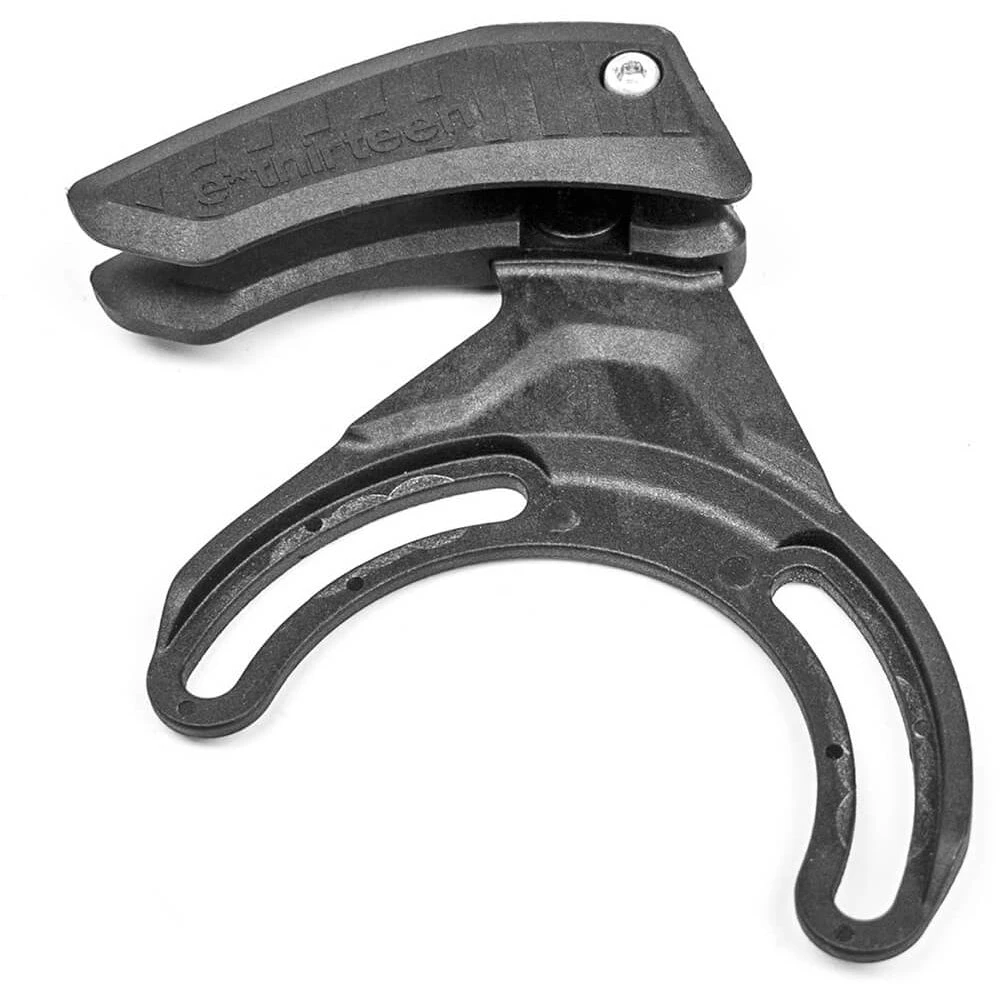

Parts E-Thirteen ESpec Plus Chain Guide

Most e-bikes use a different ISCG standard to a ‘normal’ MTB as the motor gets in the way so an ISCG05 chainguide won’t fit as the bolt spacing is different. Most manufacturers have their own ‘standards’ to work with the dimensions of their motors but E-Thirteen has come to the party with an aftermarket option that improves upon some of the existing designs out there.

Who’s this item for: e-bike riders looking to either add or upgrade their existing chainguide to a quality unit.

Materials: Carbon composite for the ultimate combination of light weight and strength.

Chainring compatibility:

• Max – 38t
• Min – 34t

Cassette compatibility: NA

Chainline: Suitable for Boost, non-Boost, and Super Boost when fitted with the correct chainline spacers (included).

Mount: Shimano E8000, Bosch CX Gen4, depending on which option you select.

Top Guide: Adjustable ISO conforming upper guide.

Lower Guide: This model does not have a lower guide.

Bash Plate: This model does not have a bash plate.

Weight: 39g

What’s in the box: Chainguide, 2x ISCG bolts, Bosch includes 2×4.5mm and 2x1mm chainline spacers, and a user manual.

Pros: Strong and lightweight, easy to install and setup.

Cons: Only suits specific brands so choose carefully!
