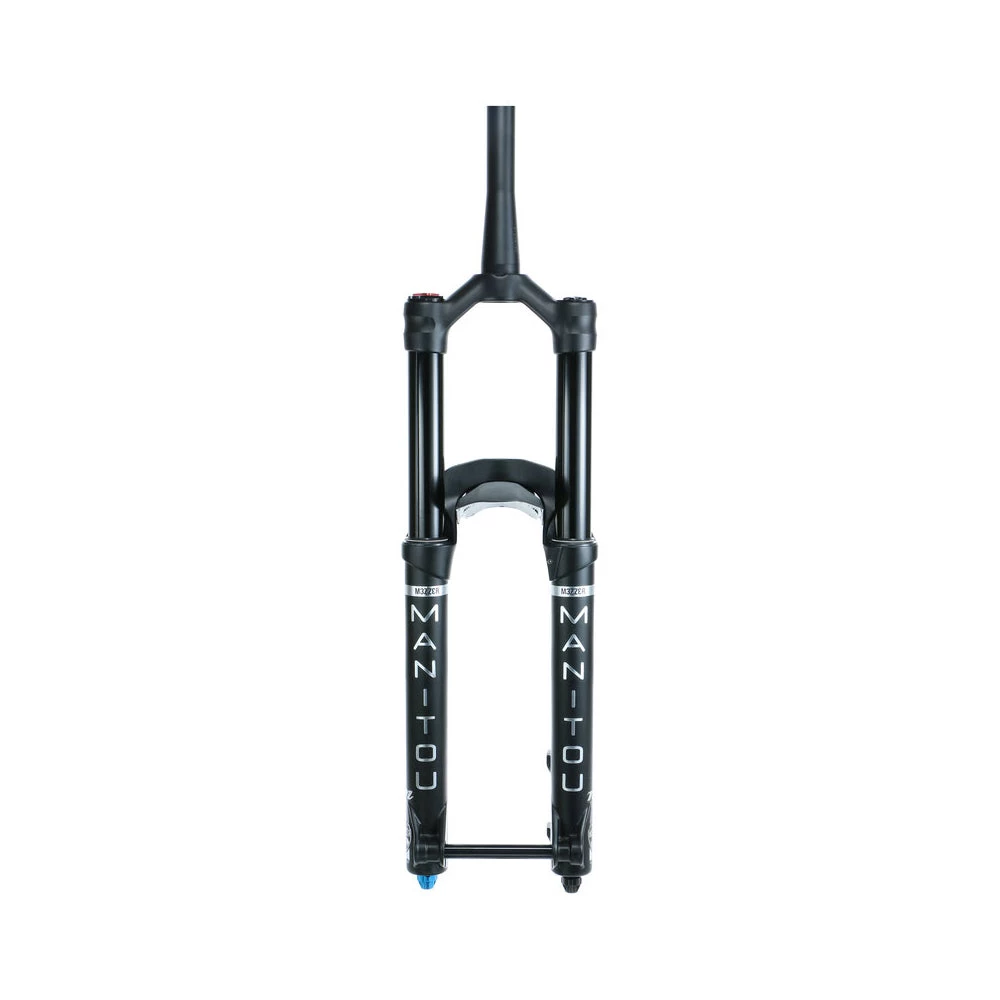

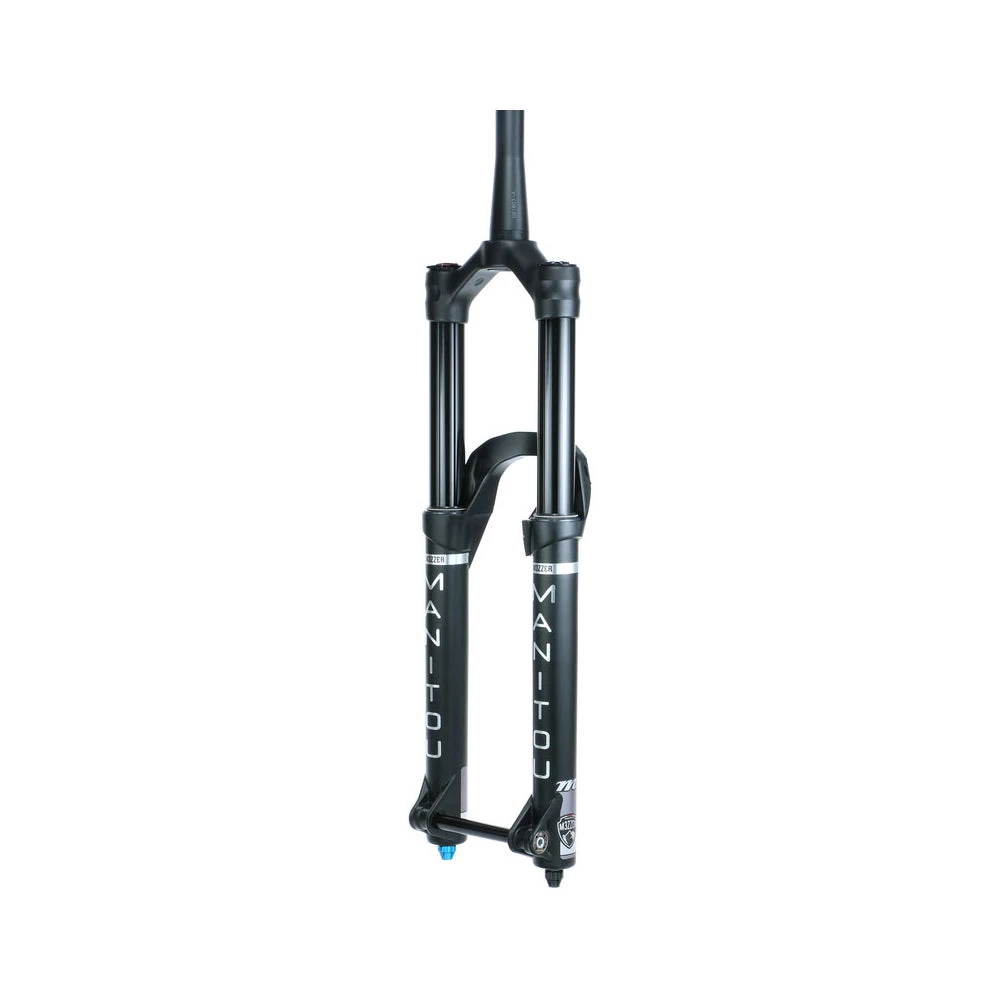

Parts Manitou Mezzer Pro Fork

Featuring 37mm stanchions and Manitou’s Reverse Arch design, the Mezzer Pro is the stiffest Enduro fork on the market… and also the lightest at just 2kg.

How did they manage to accomplish this you ask? Well, it’s not hollow if that’s what you’re wondering. In fact, this fork is loaded with technologies such as a fully sealed MC² damper, Manitou’s proven Dorado air spring, and the life-changing IRT volume adjuster.

What does all this mean? It means you no longer need to pick two, you can have the lightest, stiffest, and incredibly adjustable fork all at once.

Who this for? Enduro and trail riders looking for a super stiff, lightweight, ultra adjustable and stylish fork to roll them through the rock garden without any trouble.

Spring type: Air sprung.

Wheel size compatibility: 27.5″ 29″

Weight: 2000g (27.5″) 2032g (29″)

Fork offset: 37/44 (27.5″) 44/51 (29″)

Ride Height: 534-574mm (27.5″) 554-594mm (29″)

Max tyre width: 74mm or 2.9″.

Suspension travel amount: 160mm.

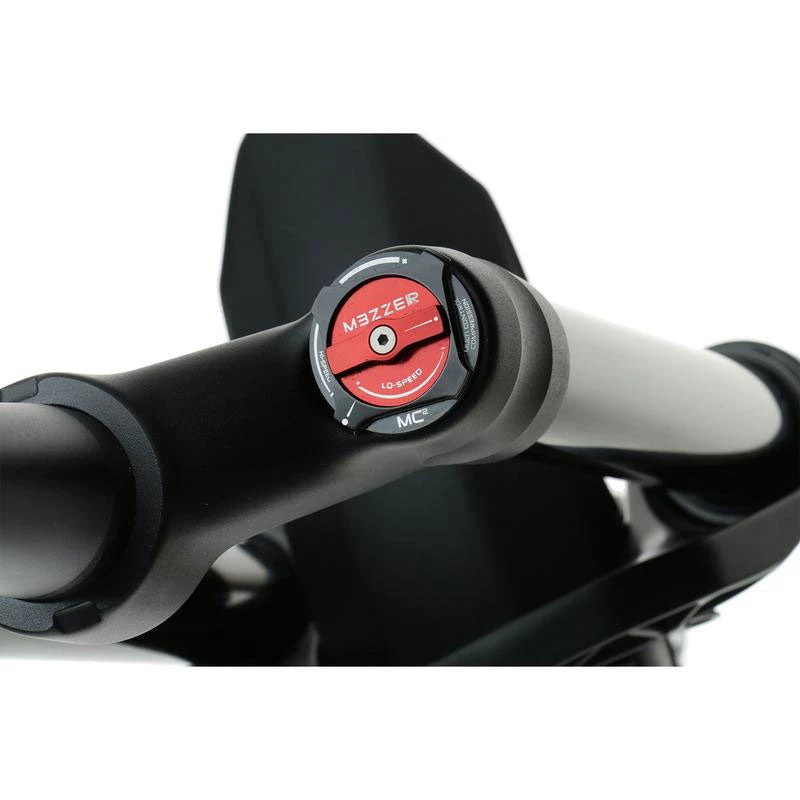

Compression damper style technologies/adjustments: MC2 Sealed Cartridge. High and low-speed external adjustments.

Rebound damper technologies/adjustments: 10 clicks of rebound adjustment

Travel adjustability: Yes, adjustable internally between 140-180mm in 10mm increments via included travel spacers.

Volume adjustability: Yes, the IRT (Infinite Rate Tune) volume adjuster allows control over the mid-stroke support and bottom-out progressivity independent from the initial spring rate to independently tune small bump sensitivity and big-hit performance

Stanchion diameter: 37mm.

Axle size and style: 15x110mm “Boost” Thru Axle.

Steerer tube standard: Tapered 1 1-8-1.5 Inches.

Steerer length: 248mm.

Lowers materials: 7000- Series Butted Wall Aluminum.

CSU / Steerer tube materials: Forged Aluminum, Hollow Bore.

Brake hose clamp/retention style: Bolted clamp.

Brake mount style: 180mm post mount.

Brake rotor compatibility (minimum/maximum): Post mount 180mm (223mm Max).
