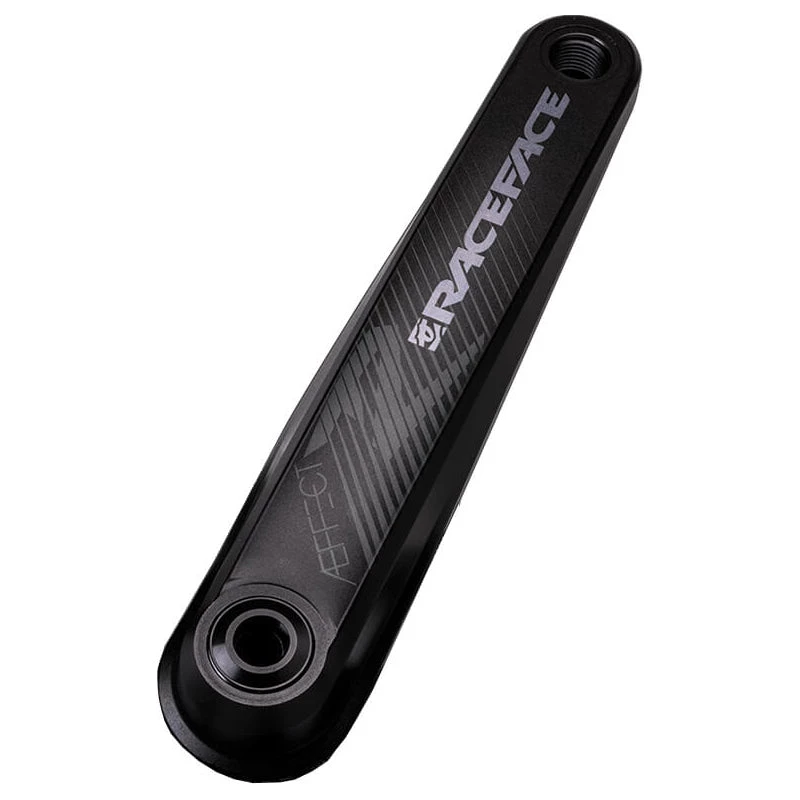

Parts Race Face Aeffect R Cinch Crank Arms

What’s better than a strong, stiff, and light crankset that doesn’t break the bank?
A strong, stiff, light crankset that doesn’t break the bank, AND is designed for Enduro, full Enduro.

Who’s this for: Full Enduro senders needing to replace their old cranks that their watt bombs destroyed, or riders wanting a reliable set of cranks with no frills.

Spindle size: Good ol’ reliable, 24mm spindle. All of what you need, and nothing that what you don’t.
These are made for 68/73mm wide bottom brackets.

Weight: 632g with a 32t chainring. Since these have no chainring, assume ~570g with no ring.

Chainring: There is no chainring included but there are tonnes of options available to work with RaceFace’s Cinch system.

Crank arm length: 165, 170, 175mm

Chainline: Chainline is dictated by the offset of the chainring you choose to mount.

Materials: Forged 7070 aluminium alloy for optimised stiffness without any excess weight.

Bottom Bracket Compatibility: For fuss-free installation, we highly recommend that you pair your RaceFace Cinch cranks with the corresponding RaceFace bottom bracket. Installation is still possible with other brand’s bottom brackets but you are likely to require extra spacers that are not included with the cranks.

Additional spacers required when installed with non-RaceFace branded bottom brackets:

PF30:

• 1x 11.5mm, and 1x 2.5mm drive side spacer
• 1x 11.5mm non-drive side spacer

BSA (Standard Threaded) and BB92 (Shimano Pressfit)

• 1x 1.5mm drive side spacer
• 1x 1.5mm non-drive side spacer
