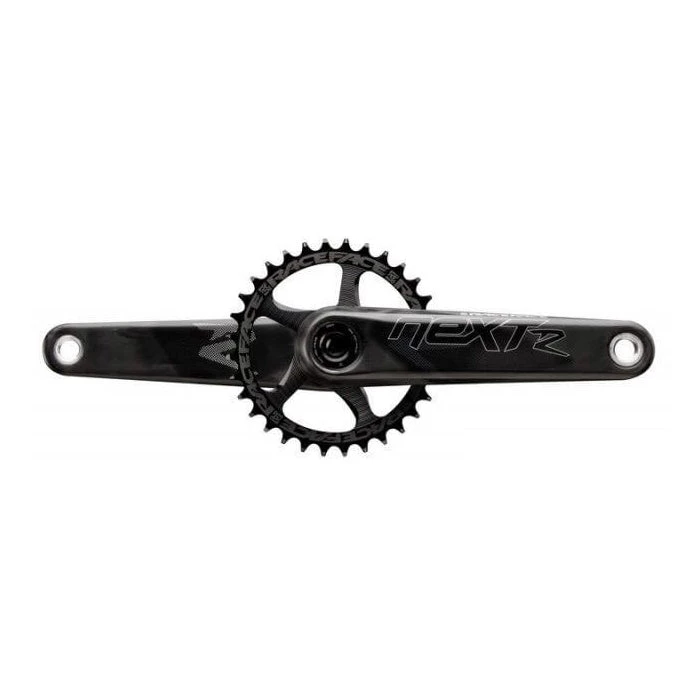

Race Face Next R Cinch Crank Arms Parts

Generally, the lighter you go, the more you sacrifice in terms of durability. RaceFace had other plans with these cranks and the Next R cranks are the next evolution of their insanely light line. Built from hand laid UD carbon with the same downhill rated pedal insert as the SixC G2, the Next R cranks are burly where it counts while keeping the weight down to an impressive 495g (weight includes chainring which is sold separately).

Trust us, you’ll be blown away by how light these are when you pick them up!

Who’s this item for: The Next R cranks are built for Enduro racing but they’re also great for Trail and XC

Spindle Size: These cranks use a 30mm spindle.

Weight: Approx 495g with a 32t chainring

Chainring: There is no chainring included but there are tonnes of options available to work with RaceFace’s Cinch system.

Crank arm length: 170, 175mm

Chainline: Dictated by chainring. Compatible with Boost and non-Boost frames.

Materials: Hand laid UD Carbon crank arms with downhill rated SixC G2 pedal insert, 7050 aluminium spindle.

Bottom Bracket Compatibility: For fuss-free installation, we highly recommend that you pair your RaceFace Cinch cranks with the corresponding RaceFace bottom bracket. Installation is still possible with other brand’s bottom brackets but you are likely to require extra spacers that are not included with the cranks.

Additional spacers required when installed with non-RaceFace branded bottom brackets:

PF30 and BB30:

• 1x 11.5mm, and 1x 2.5mm drive side spacer
• 1x 11.5mm non-drive side spacer

BSA (Standard Threaded) and BB92 (Shimano Pressfit)

• 1x 1.5mm drive side spacer
• 1x 1.5mm non-drive side spacer
