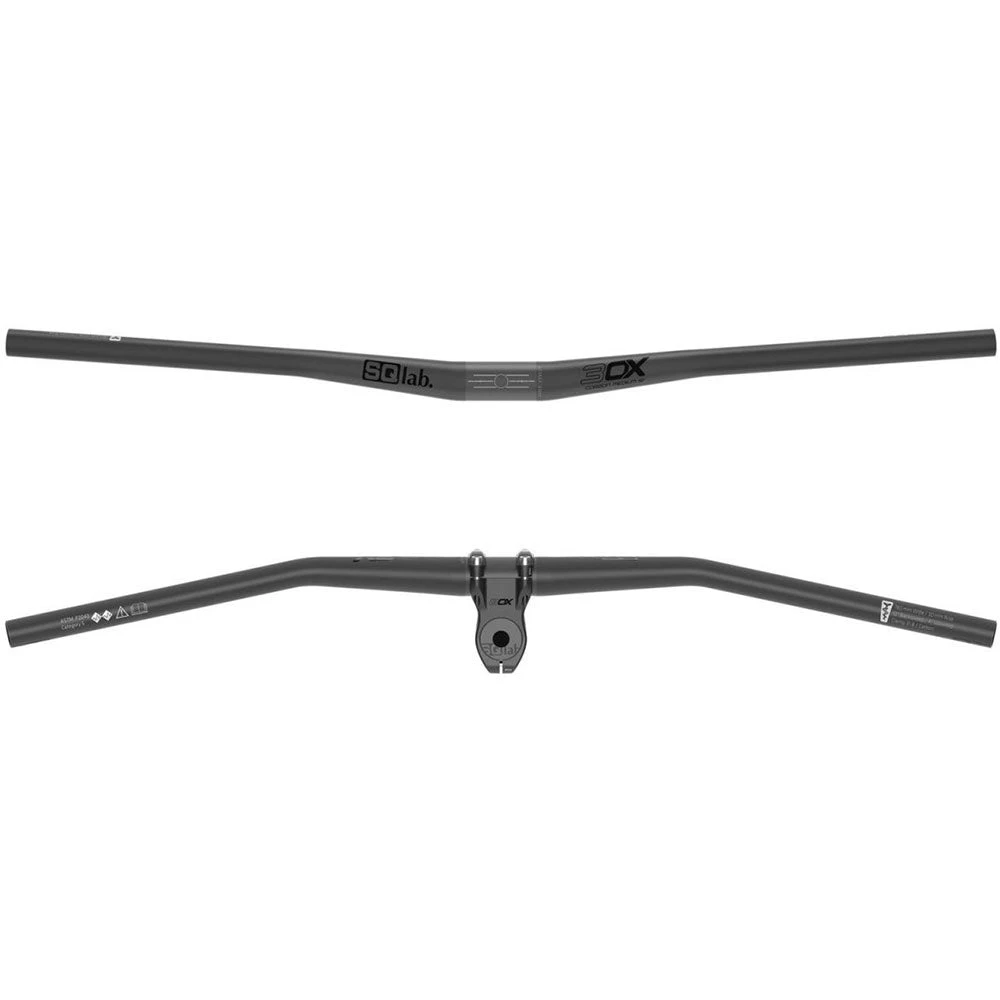

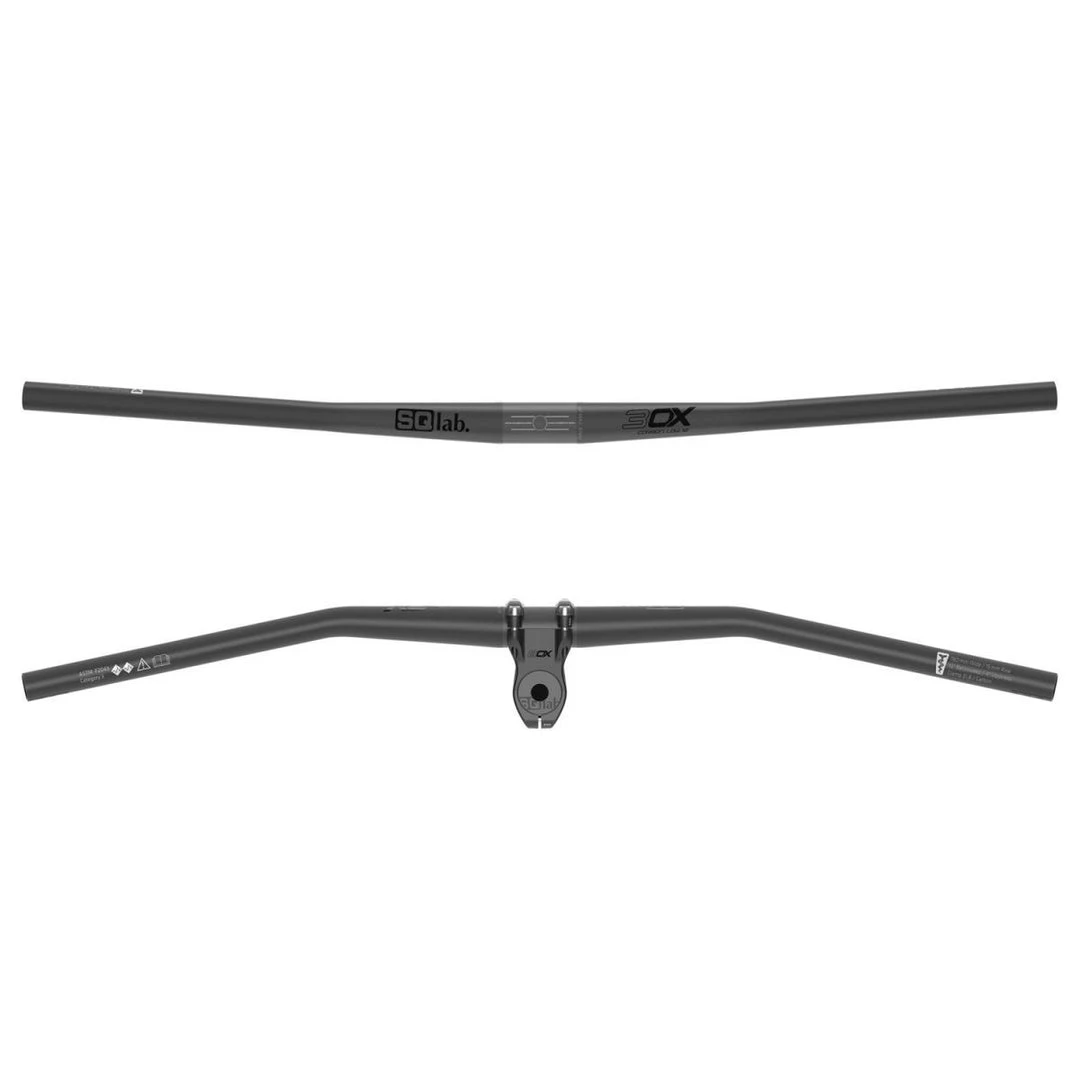

SQLab 3OX Carbon Bar

SQLab 3OX Carbon Bars provide the perfect match of form, flex and diameter, making them one of the lightest and strongest gravity and performance e-bike handlebars available.

During testing, these bars passed all stress tests without any detected fatigue or material damage, and they’re one of a very select few that Bike magazine was unable to break. The bars are produced strictly according to German quality guidelines, with absolute perfection at the highest level and with maximum care.

These bars use a larger backsweep than is found on most MTB bars. The shorter reach created provides a natural transition from the lower arm to the hand when in a more upright riding position and protects the wrist from the extreme strain that can occur in downhill riding.

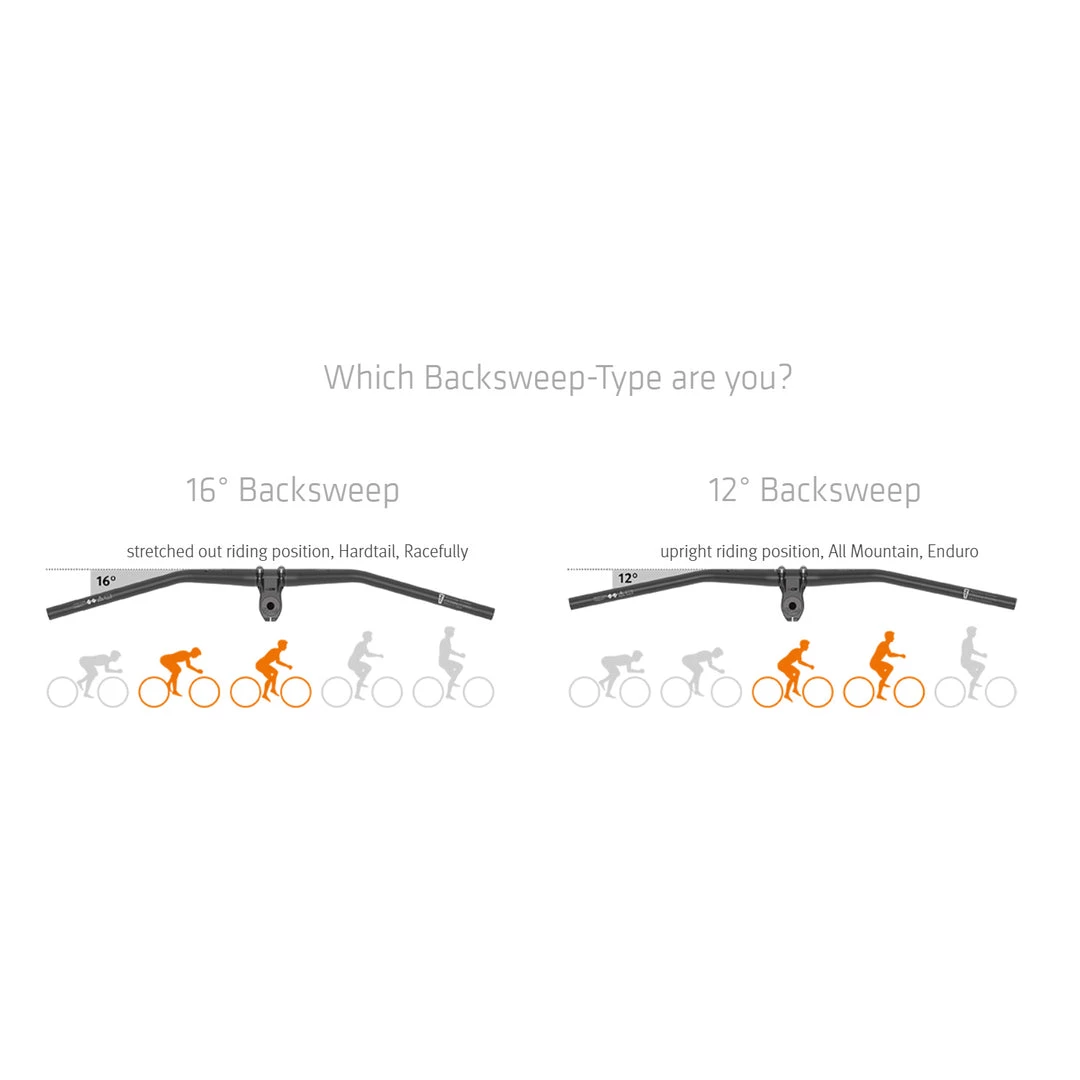

SQLab recommends the 16° option for hardtails and XC race bikes and the 12° option for All Mountain and Enduro.

The 4° upsweep brings the elbows into a perfect position for a dynamic riding style.

Does not include a stem – stem shown in images is used for display purposes only.

Specs:

• Material: Carbon
• Width: 780mm (can be trimmed to 720mm)
• Rise: 15, 30, 45mm
• Backsweep: 12, 16 degree
• Upsweep: 4 degree
• Weight: Approx 325g
• Clamp diameter: 31.8mm
